Sold out
Description
Please note that this product does not qualify for standard shipping rates and is only available for in store collection. Should you still require the product to be shipped to you, you can request product dimensions and weight and book a collection via your preferred courier. Alternatively you contact us directly for a quote on shipping and make payment based on the amount provided

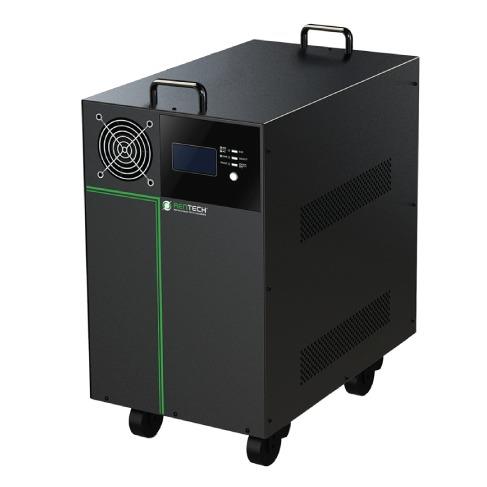

The Rentech Jaguar 1.2K Battery Box UPS is a Cost-effective back-up power solution for Home or Office.
Has a built in overload and short circuit protection
Simulated sine wave inverter
Wide input voltage range: 90-280 VAC
Excellent deep cycle discharge ability
Excellent charge acceptance ability
Sleek integrated battery design
It is an easy to use plug and play system
It comes with four outlet plugs
It has LCD/LED display for comprehensive display
Wheels for portability and ease of use
Please note that this product has a built-in fan that runs continuously
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Electro Gadgets/Light Market will not be held liable for any product malfunctions as a result of incorrectly installed systems.
|
Model
|
Jaguar 1.2K Battery Box
|
|
SKU
|
S405
|
|
Rated Power
|
1200VA / 900W
|
|
INPUT
|
|
|
Voltage
|
230 VAC
|
|
Selectable Voltage Range
|
90-280 VAC(Wide Range) | 170-280 VAC(Narrow Range)
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
OUTPUT
|
|
|
AC Voltage Regulation (Batt. Mode)
|
230VAC ± 10%
|
|
Overload (Line mode)
|
Load >110%±15% , alarm 5 times then fault
If user decrease the load <100% rating, the overload alarm will release.
Load >130% ±15% , fault immediately.
|
|
Efficiency (Peak)
|
>82% (Useable wattage 738W, Load Should Not Exceed This)
|
|
Transfer Time
|
20ms typical
|
|
Waveform
|
Simulated sine wave
|
|
BATTERY (not Included)
|
|
|
Battery Voltage
|
12 VDC
|
|
Floating Charge Voltage
|
13.7 VDC ± 0.5 VDC
|
|
Cabinet Dimensions D x W x H (mm)
|
393*250*459
|
|
Net Weight (kgs) excl. battery
|
13,5
|
|
Battery L x W x H (mm)
|
1 x 12V100Ah (330*171*219)
|
|
OPERATING ENVIRONMENT
|
|
|
Humidity
|
0 to 90% Relative Humidity (Non-condensing)
|
|
Operating Temperature
|
0°C to 40°C
|
|
Storage Temperature
|
-15°C to 50°C
|
